Livox AVIA2 1535 nm Fiber Laser LiDAR with Fan

SKU: Livox-AVIA2
Regular price 4.198,95 € Sale price 3.810,45 €
9% OFF
incl. VAT
excl. VAT
Checking inventory…

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Add to Wishlist
Livox AVIA2 1535 nm Fiber Laser LiDAR with Fan

Livox AVIA2 1535 nm Fiber Laser LiDAR with Fan

3.810,45 €

Livox AVIA2 is a 1535 nm fiber laser LiDAR with fan for long-range industrial sensing, infrastructure inspection and spatial measurement. It combines selectable wide-area and focused viewing modes with fine-beam point-cloud acquisition, making it relevant to transmission corridors, railway approaches, bulk-material sites and waterway monitoring. This listing is the with-fan version, not the smaller NF configuration.

Select 80° × 80° Normal mode for wider coverage or 15° × 15° Focus mode for distant inspection. At 100 klx, Normal mode specifies 400 m at 5% reflectivity and a 400 m maximum range. Livox also gives an approximately 600 m at 10% reflectivity equivalent; this is not an extension of the Normal-mode cutoff. Focus mode specifies at least 800 m at 10% reflectivity, with a 1000 m cutoff.

Important: AVIA2 does not support hot swapping. Shut down the sensor before connecting or disconnecting it to avoid damage.

Livox AVIA2 Normal and Focus field of view


Features

  • 1535 nm Class 1 laser: A 1535 nm laser in the broader 1550 nm eye-safe spectrum supports ultra-long-range sensing.
  • Dual field of view: Select 80° × 80° Normal mode for wide coverage or 15° × 15° Focus mode for long-range observation.
  • Long-range detection: The official 100 klx specification lists 400 m at 5% reflectivity in Normal mode and at least 800 m at 10% reflectivity in Focus mode.
  • Fine-beam detail: A 0.25 mrad × 0.25 mrad beam divergence corresponds to a theoretical 2.5 cm spot diameter at 100 m.
  • Accurate long-distance data: The official specification lists range precision of up to 4 cm at 1σ from 5 to 400 m and up to 6 cm at 1σ from 400 to 700 m at FOV center.
  • Non-repetitive scanning: A wedge-prism scan pattern accumulates point-cloud coverage over time for detailed scene capture.
  • Rain and fog noise removal: Livox describes built-in strategies for identifying and filtering interference from rain and fog, subject to environmental conditions.
  • Industrial environmental rating: The complete AVIA2 sensor is IP66 with a specified operating range of -20°C to 65°C.
  • Timing and data integration: 100 Mbps Ethernet, GPS, PTP and NTP synchronization support coordinated sensing systems.

Specifications

Parameter Specification
Product Livox AVIA2 high-performance fiber laser LiDAR
SKU Livox-AVIA2
Configuration With fan
Laser wavelength and safety 1535 nm, Class 1 (IEC 60825-1:2014)
Detection range at 100 klx Normal: 400 m at 5% reflectivity (approximately 600 m at 10% reflectivity equivalent; Normal-mode maximum remains 400 m); Focus: ≥800 m at 10% reflectivity
Maximum detection range Normal: 400 m; Focus: 1000 m
Field of view Normal: 80° × 80°; Focus: 15° × 15°
Blind zone 5 m at 80% reflectivity
Range accuracy and precision 5-400 m at FOV center: accuracy ≤5 cm, precision ≤4 cm at 1σ; 400-700 m at FOV center: accuracy ≤10 cm, precision ≤6 cm at 1σ
Angular precision ≤0.02° at 1σ
Beam divergence 0.25 mrad × 0.25 mrad
Point rate Normal: 350,000 points/s; Focus: 100,000 points/s
Point cloud data x / y / z / intensity / tag (Cartesian coordinates)
False alarm rate ≤0.01% at 100 klx
Return mode Strongest, first, dual
IMU Built-in ICM40609D
Operating temperature -20°C to 65°C
Ingress protection IP66
Power Regular temperature: 55 W starting, 50 W steady-state; low temperature with fan not running: 55 W starting, 45 W steady-state
Input voltage 9-27 V DC
Data port and synchronization 100 Mbps Ethernet; GPS (PPS + GPRMC), PTP (IEEE 1588), NTP
Dimensions and weight With fan: 146 × 113 × 139 mm (plus or minus 0.5 mm); ≤1.8 kg

Measurement conditions: The accuracy and precision figures refer to FOV-center tests at 25°C using an 80% reflector at 5-90 m with an attenuator, as specified by Livox. Precision is statistical repeatability, not a guarantee of application-level accuracy under all conditions. The 5 m blind zone at 80% reflectivity also makes AVIA2 different from a near-field obstacle sensor.


AVIA2 vs AVIA Comparison

Category Livox AVIA Livox AVIA2 With Fan
Laser wavelength 905 nm 1535 nm
Detection range at 100 klx 190 m at 10%; 230 m at 20%; 320 m at 80% reflectivity Normal: 400 m at 5% reflectivity; 400 m maximum (approximately 600 m at 10% equivalent). Focus: ≥800 m at 10% reflectivity; 1000 m cutoff.
Field of view Non-repetitive: 70.4° (H) × 77.2° (V); repetitive line: 70.4° (H) × 4.5° (V) Normal: 80° × 80°; Focus: 15° × 15°
Point rate 240,000 points/s strongest or first; 480,000 points/s dual; 720,000 points/s triple return Normal: 350,000 points/s; Focus: 100,000 points/s
Angular precision <0.05° at 1σ ≤0.02° at 1σ
Ingress protection IP67 overall, excluding Converter 2.0 and cables IP66
Dimensions 91 × 61.2 × 64.8 mm With fan: 146 × 113 × 139 mm
Weight 498 g without cables With fan: ≤1.8 kg
Power 8 W non-repetitive or 9 W repetitive; 16 W starting 55 W starting; 50 W regular steady-state or 45 W low-temperature steady-state with fan not running

Application

AVIA2 supports wide-area and long-distance sensing where target geometry and point-cloud density matter. Choose Normal or Focus mode for the required field of view and range, then evaluate weather, reflectivity and occlusion at the deployment site. Detection, classification, volume calculation and alerts are application-level processing tasks.

  • Power-line security - Capture corridor geometry and thin objects such as wires, branches and crane structures for infrastructure monitoring. Focus mode can concentrate samples into a distant area of interest, while Normal mode covers a wider zone.
  • Wayside condition maintenance - Observe railway approaches, tunnel entrances and nearby slopes from a fixed mounting point. Plan sightlines around terrain and structures, then validate host-side obstacle rules with representative targets.

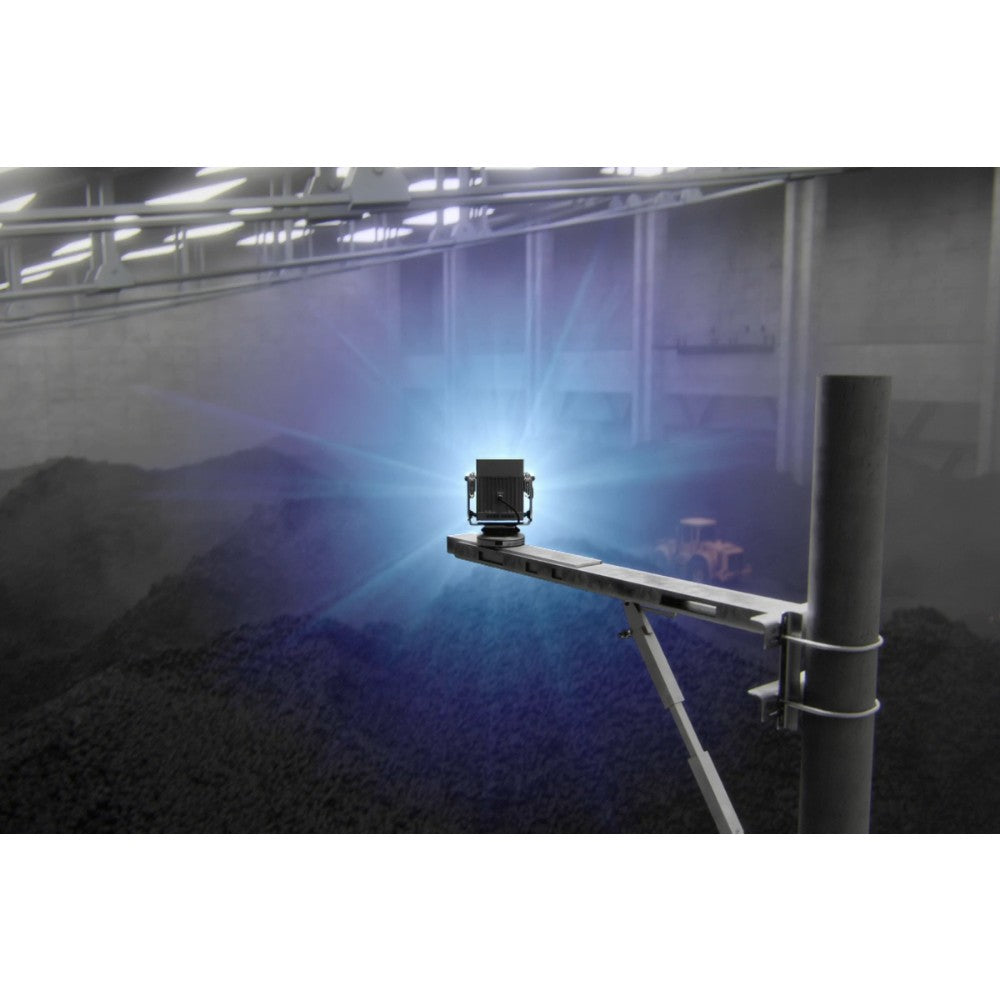

  • Bulk material volume measurement - Acquire point clouds of coal, grain and other irregular stockpiles for a volume-measurement pipeline. Accurate volume results depend on calibrated installation, a reference surface and coverage of the pile rather than range precision alone.
  • Smart waterways - Collect long-range spatial data along waterway corridors and vessel-transit areas. Test the sensing layout under site-specific weather and target reflectivity; rain and fog filtering does not eliminate all environmental limitations.
  • Industrial perimeter monitoring - Map substations, facilities and infrastructure zones using wide Normal-mode coverage. Combine multiple views where equipment blocks the line of sight and account for the 5 m specified blind zone near the sensor.
  • Long-range inspection research - Study small-target representation using the fine beam and configurable sensing modes. Keep range, return selection, integration time and viewing mode with each dataset for meaningful algorithm comparisons.

Integration and Deployment

The official specification lists a 100 Mbps Ethernet data port, with GPS (PPS + GPRMC), PTP (IEEE 1588) and NTP synchronization. AVIA2 outputs Cartesian point-cloud data with x, y, z, intensity and tag fields and includes an ICM40609D IMU.

Use a regulated 9-27 V DC supply that can handle the documented 55 W starting power. For frequent-restart scenarios above 50°C ambient temperature, follow the official specification guidance and confirm mounting, ventilation and operating conditions before final deployment.

Software workflow: The AVIA2 manual directs developers to Livox Viewer 2, Livox SDK2, Livox ROS Driver2 and Livox Wiki. Follow the AVIA2-specific instructions and configuration supplied for the installed software revision, rather than reusing original AVIA network and driver settings. Inspect raw point clouds and timestamps before connecting the sensor to a host-side perception pipeline.

High-temperature restart condition: For scenarios involving frequent restarts above 50°C ambient temperature, Livox recommends limiting each continuous operating period to 5 minutes to reduce overheating risk. This condition is distinct from the general -20°C to 65°C operating-temperature specification.

Optical installation: Keep the optical path and cooling airflow clear. Avoid pointing the sensor at close-range, high-reflectivity objects such as low-E glass or corner-cube retroreflectors, following the official warning about strong returned light and potential receiver damage.


Reference Documents

With-Fan Product Documentation

Fanless Reference Documentation

Software

Product 3D Models

Development

Support


Packing List

SKU Package Item Quantity
Livox-AVIA2 Livox AVIA2 LiDAR sensor, with-fan version 1
Avia 2 Aviation Connector Breakout Cable (1-to-3) 1
Power Adapter 1

FAQ

Which AVIA2 configuration is this listing for?

This listing is for the AVIA2 with-fan configuration with SKU Livox-AVIA2. The official specifications list with-fan dimensions of 146 x 113 x 139 mm and a weight of no more than 1.8 kg.

What is the difference between Normal and Focus modes?

Normal mode provides an 80 by 80 degree field of view for broad-area sensing. Focus mode provides a 15 by 15 degree field of view for long-range inspection tasks.

What detection range does AVIA2 specify?

At 100 klx, Normal mode specifies 400 m at 5% reflectivity and a 400 m maximum range. The approximately 600 m at 10% reflectivity equivalent is a comparison figure, not an extended Normal-mode cutoff. Focus mode specifies at least 800 m at 10% reflectivity and a 1000 m cutoff.

What point rates are available?

The official specification lists 350,000 points/s in Normal mode and 100,000 points/s in Focus mode. The appropriate operating mode depends on the coverage and range needed by the application.

How accurate is the AVIA2 point cloud?

At FOV center, Livox specifies accuracy of no more than 5 cm and precision of no more than 4 cm at 1 sigma for 5-400 m, and 10 cm accuracy / 6 cm precision for 400-700 m. The published test method uses a 25-degree C environment, an 80% reflector at 5-90 m and an attenuator. The blind zone is 5 m at 80% reflectivity.

Can AVIA2 operate outdoors?

The complete AVIA2 sensor is rated IP66 and has a specified operating temperature range of -20 degrees C to 65 degrees C. Use the official manual to confirm site-specific mounting, cooling and environmental requirements.

What power supply does AVIA2 require?

The specified input range is 9 to 27 V DC. Starting power can reach 55 W, and the official specification lists 50 W steady-state at regular temperature or 45 W at low temperature when the fan is not running.

Does AVIA2 support hot swapping?

No. Shut down the sensor before connecting or disconnecting it to avoid damage.

How is AVIA2 connected and synchronized?

AVIA2 uses a 100 Mbps Ethernet data port and supports GPS with PPS plus GPRMC, PTP based on IEEE 1588, and NTP synchronization. The point-cloud format includes x, y, z, intensity and tag data, and the sensor includes an ICM40609D IMU.

What is included with SKU Livox-AVIA2?

The package includes one AVIA2 LiDAR sensor with fan, one Avia 2 Aviation Connector Breakout Cable (1-to-3), and one power adapter.
