Elecrow CrowView Note 15.6inch-All-in-One Portable Monitor
Description
The Elecrow CrowView Note is a 15.6-inch portable monitor with a built-in keyboard, touchpad, speakers, microphone and 6000 mAh battery. Its 1920 × 1080 IPS screen turns a compatible phone, single-board computer or mini PC into a compact workstation without a separate display and input devices. The CrowView Note has full-featured USB-C video connectivity as well as Mini HD input.
Notice: The CrowView Note is a portable monitor, not a computer: it has no CPU, RAM, HDD/SSD or camera. For keyboard and touchpad use with an HD video connection, connect USB-A to the host. Use an appropriate power supply and the full-featured USB-C port when connecting by USB-C. Raspberry Pi and Jetson Nano host boards and their bridge accessories are not included.
Features
- Integrated workstation: The CrowView Note combines display, keyboard, touchpad, dual speakers, microphone and battery in a folding 15.6-inch format.
- FHD IPS display: 1920 × 1080 resolution, 60 Hz refresh rate, 300 nit brightness and 100% sRGB or 72% NTSC color gamut.
- Flexible connections: Full-featured USB-C carries supported audio, video and data; Mini HD and USB-A support other host setups.
- Mobile power: The 6000 mAh battery and 5 V/5 A power output support compatible phones and 5 V single-board computers.
- Signal switching: Use F1 or Fn+F1 to switch between connected input sources.
Specifications
| Display size | 15.6 inches |
| Resolution | 1920 × 1080 (FHD) |
| Refresh rate | 60 Hz |
| Brightness | 300 nit |
| Color gamut | 100% sRGB or 72% NTSC |
| Panel / aspect ratio | IPS / 16:9 |
| Battery | 6000 mAh |
| Color / material | Grey / ABS + PC |
| Audio | Microphone; dual speakers |

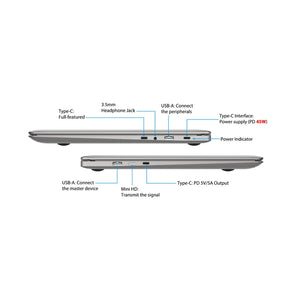

| Interfaces | 1 × USB-C power input; 1 × full-featured USB-C; 1 × USB-C power output; 1 × Mini HD; 2 × USB-A |
| Keyboard | 101 keys |
| Power input | PD 5 V/3 A, 9 V/3 A, 12 V/3 A or 15 V/3 A |
| Supported systems | Windows, macOS, ChromeOS, Linux, Android, Raspberry Pi OS, Nintendo Switch, PS4 and PS5, subject to host video and input support |
| Compatible SBC families | Raspberry Pi 5/4B/3B/3B+/Zero, Jetson Nano Developer Kit, Rock Pi, Orange Pi 4B, LattePanda V1, Banana Pi M5 and BeagleBone |
| Dimensions / net weight | 372 × 244 × 26 mm / 1545 g |
Applications
- Use the CrowView Note as a portable keyboard-and-display terminal for Raspberry Pi, Jetson Nano and other compatible SBC projects.
- Connect a supported smartphone for screen mirroring or its available desktop mode.
- Give a mini PC or compatible games console an integrated screen and input setup while travelling or working at a temporary desk.
Product List
Standard CrowView Note package listed by Elecrow:
- 1 × CrowView Note 15.6-inch monitor
- 1 × power adapter
- 1 × USB-C to USB-C cable
- 1 × USB-A to USB-A cable
- 1 × HD to Mini HD cable
- 1 × user manual
Bridge accessories: The Raspberry Pi 5 bridge-board set and Jetson Nano Developer Kit bridge board are not included. Purchase them separately if needed.
Other Content
For USB-C video, use the full-featured port and a cable that supports video transmission. With an HD video connection, the USB-A cable provides keyboard and touchpad input. Phone desktop mode depends on the phone's own support.


Resources
- CrowView Note 15.6-inch product wiki
- CrowView Note 15.6-inch user manual (PDF)
- CrowView Note CE report (PDF)
- CrowView Note Raspberry Pi setup guide
FAQ
Is the CrowView Note a laptop?
No. The CrowView Note supplies the display and input devices, while a connected phone, SBC or computer supplies the computing hardware.
How do the keyboard and touchpad work over Mini HD?
Connect the USB-A cable between the CrowView Note and the host as well as the HD video cable.
Can I connect a Raspberry Pi 5 or Jetson Nano?
Yes. The CrowView Note supports these devices. Raspberry Pi 5 and Jetson Nano bridge accessories must be purchased separately; the host boards are not included.
Will every USB-C phone provide a desktop interface?
No. Screen mirroring and desktop mode depend on the phone's USB-C video capability and operating system.
